Fatigue Alert Sensor

Fatigue alert can be used to alert a driver as soon as he/she is falling asleep or not paying attention to the road for a determined period of time, protecting your life and your asset.

Models

1. Movon MDSM-7
   • Movon MDSM-7 + MDAS-9
2. Caredrive
3. Lumeway

Features

• Triggering a loud audible alarm to the driver to alert him/her while sending a message to the server.
• Capture a photo when vehicle’s turned on or off
• Send an Alert and take a photo if a driver’s not detected at a speed greater than 20mph (this is the case when the sensor is blocked for example)
• Max and minimum speed Threshold alerts and Photo taken
• Will work with reading glassess and even with sunglasses.

Jump to:

[list icon=’carat-1-e’]
[item]SETUP[/item]
[item]API[/item]
[item]PEGASUS GATEWAY[/item]
[item]TROUBLESHOOTING[/item]
[/list]

Installation – Syrus 2G

 Installation – Syrus 3G

What you’ll need

• 12v Power source
• Syrus3G
• Power & Ground cables to Syrus device

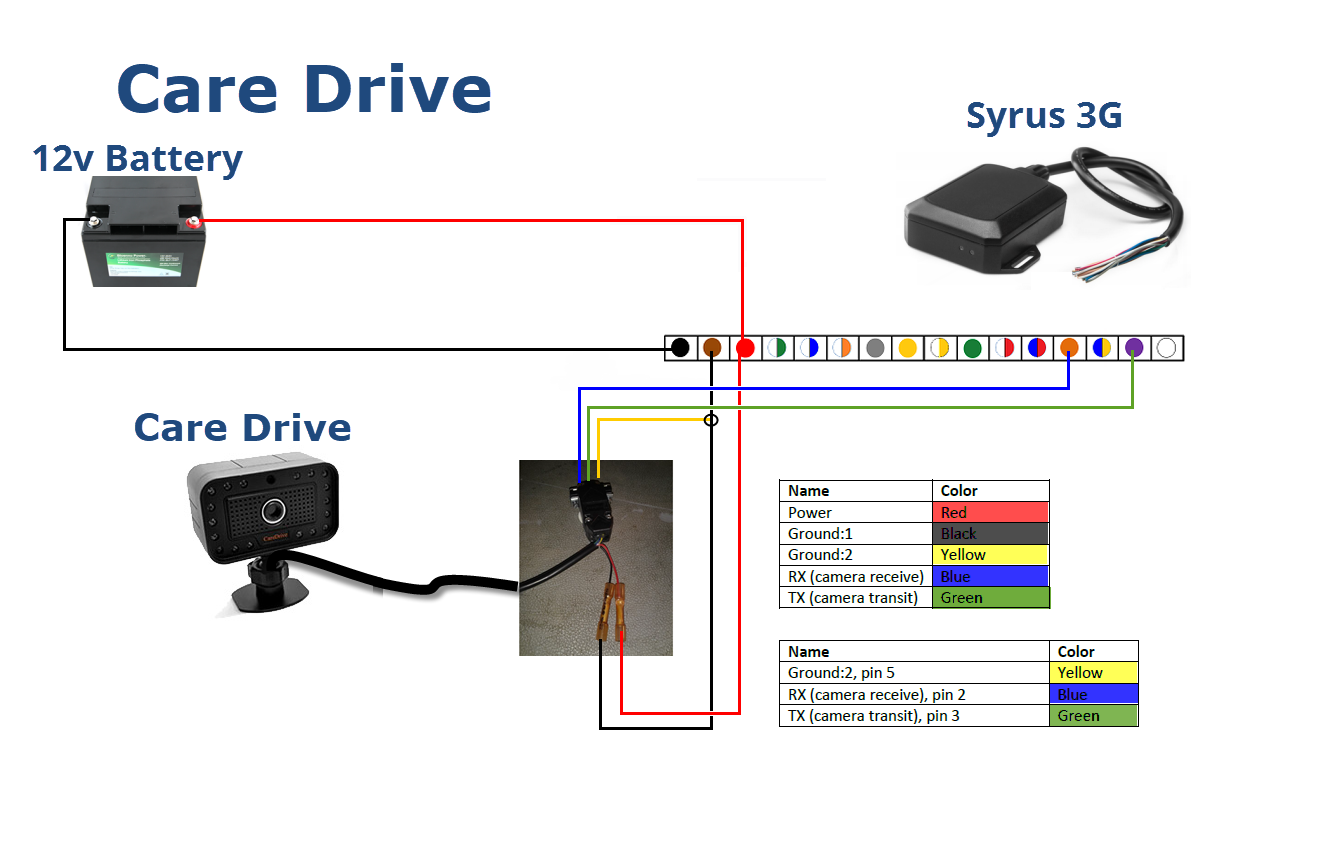

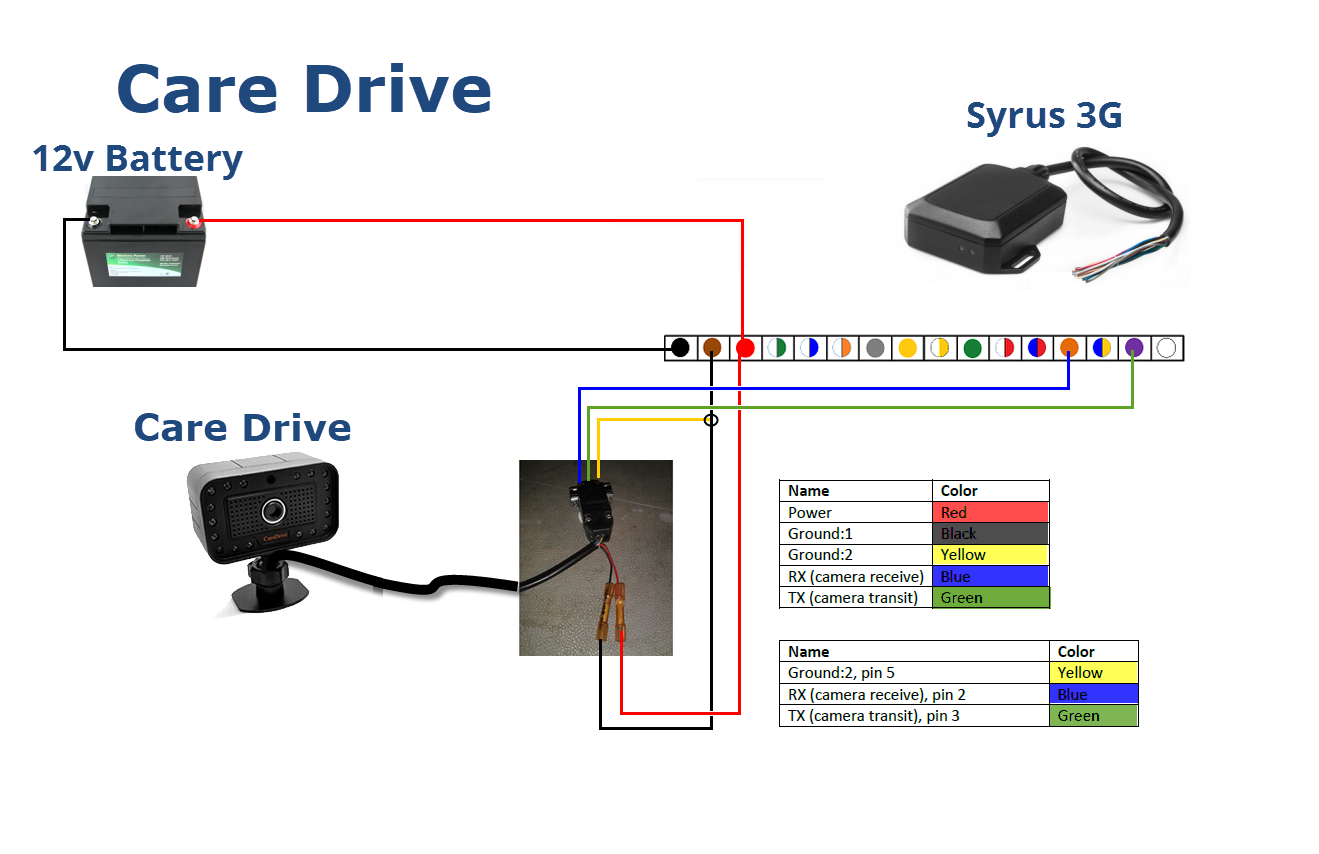

• Ground, Tx & Rx, cables connection from Fatigue Alert Sensor to Syrus 3G, some fatigue alert sensors come with an RS232 DB9 adapter and it’s necessary to build a crossed Male DB9 adapter to make it compatible, see diagrams below.
• Fatigue Alert Sensor

Installation – Syrus 4G

View Syrus 4 wiring diagrams in Syrus 4 documentation manual.

Pegasus Gateway Setup

Step 1:

Make sure your firmware is updated to the latest version:
(greater than 2.1.58)

Step 2:

1. Go to Gateway Management
2. Organization
3. Devices
4. Search for the device (here we enter the device IMEI)
5. Click on the device

Step 3:

1. Click on Managed Configuration Definition
2. Select the Lumeway Ing-test configuration
3. Set the configuration

wait 10 minutes for configuration to synchronize.

Then go to the Configuration Parameters and enable the camera mode.
Step 4:

Configuring the Lumeway Settings from the device Console.

>SXALWC0200143C<

02(hex), Sensitivity
[list]
[item]02: 2.2 seconds – highly sensitive[/item]
[item]03: 2.9[/item]
[item]04: 3.7[/item]
[item]05: 4.5[/item]
[item]06: 5.3[/item]
[item]07: 6.1[/item]
[item]08: 6.9[/item]
[item]09: 7.7[/item]
[item]0A: 8.5[/item]
[item]0B: 15 seconds – low sensitivity[/item]
[item]FF: Factory default[/item]
[/list]

00(hex), Volume
[list]
[item]00: Speaker Off[/item]
[item]01: Low[/item]
[item]02: High[/item]
[item]FF: Factory default[/item]
[/list]

14(hex), MinSpeed
[list]
[item]00-FE, km/hr. i.e. 0x14=20km/hr[/item]
[/list]

3C(hex), Max Speed
[list]
[item]00-FF km/hr. i.e. 0x3C=60km/hr[/item]
[/list]

Example: To set the sensitivity to a medium setting, the volume to high, min speed to 30km/hr and max speed to 85km/hr

>SXALWC06021E55<

API

For more details please visit: http://docs.pegasusgateway.com/#fatigue-sensor

Troubleshooting

[sections]
[section title=”The Lumeway is not taking any photos?”]
Please make sure the Photocam mode is enabled in order to take photos, see step 3 above.
[/section]
[/sections]

 Care Drive

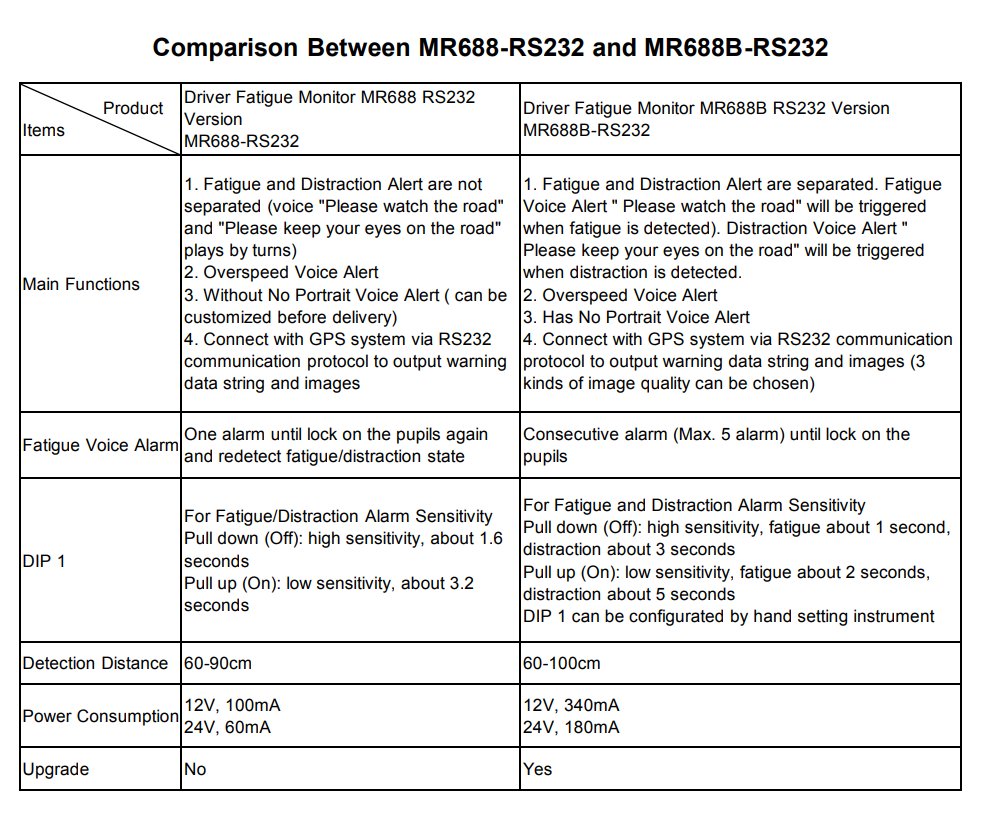

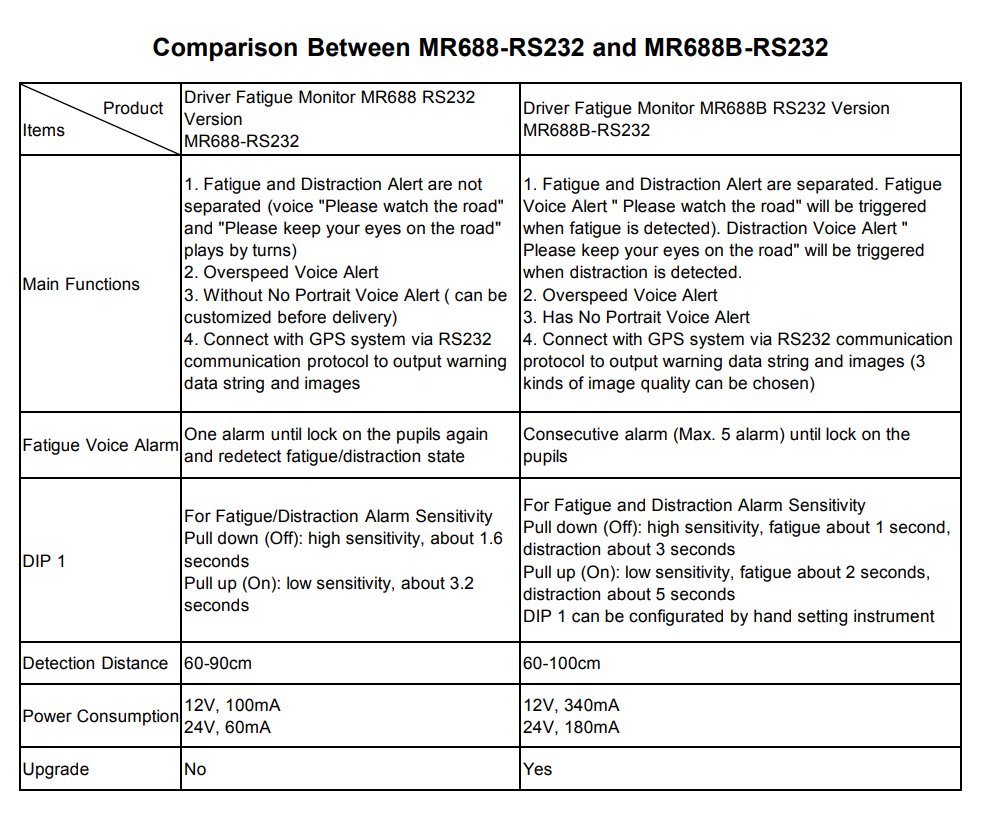

Comparison Between MR688-RS232 and MR688B-RS232

• Connection status
• Fatigue alarm
• Driver not detected

• aditional to above, detects Distraction

• Fatigue Alert Sensor is the name we use for Lumeway and/or  Caredrive devices. Models MR688 and MR688B are specific for the Caredrive Fatigue Alert sensor.
• All Fatigue Alert Sensor reports, include pictures

Movon MDSM-7

MOVON Corporation
ADAS Business l General Manager
Phone: +82-2-2050-4632
Email: dominic.so@movon.co.kr

Lumeway

LumeWay Products Inc
800 Main St, Suite 205, Holden, MA 01520
Email: sales@lumeway.com
https://lumeway.com/#contact

Care Drive

Care Drive
24/F Glorious Tower, No.850 East Dongfeng Road, Guangzhou, China
Phone: 0086 20 62316781
Email: marketing@care-drive.com
http://www.care-drive.com/contact-us/distributors/
