    • #13172
      Jose R.
      Keymaster

      SMS COMMANDS

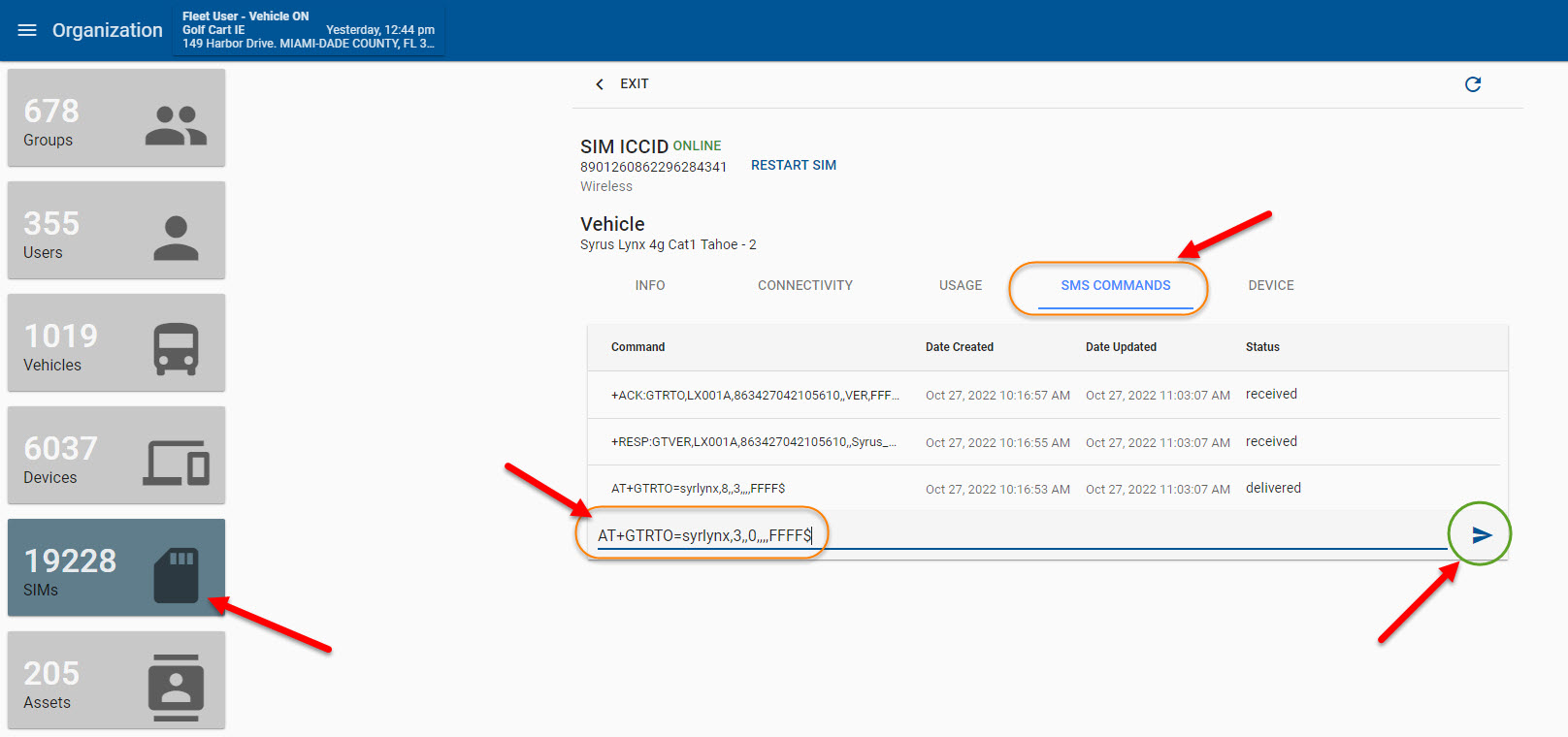

      To send commands to  Syrus Lynx via SMS you can do so directly from Pegasus.

      Go to Organization>SIM>search for the simcard then select: SMS COMMANDS tab.

      Type in the command within the SMS field and click on the send botton once activated.

      PEGASUS CONSOLE COMMANDS*

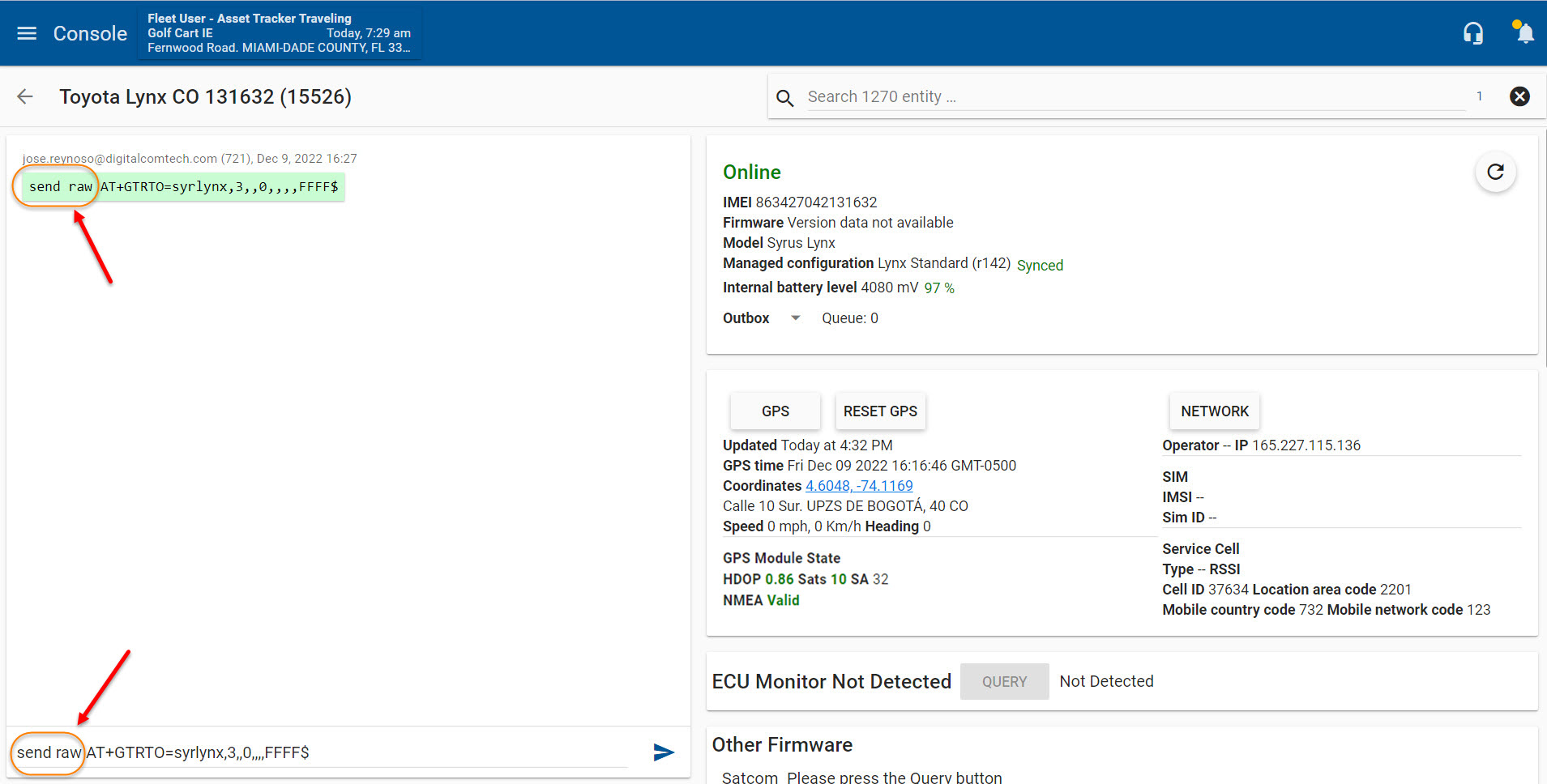

      To send commands to Syrus Lynx via Pegasus Console, you just need to add the suffix: send raw to the command you want or need to send (see picture below)

      *UPDATE To send the commands via Pegasus Console, there’s not need to add the prefix “send raw” anymore (see example below)

      Quick Important Syrus Lynx Commands

      Send via Pegasus Console or SMS

      ————————————————————————————————————-

                      • AT+GTBSI=syrlynx,tu.apn.com,,,tu.apn.com,,,00,0,1,FFFF$ – Change APN
                        (replace tu.apn.com for your required APN)
                      • AT+GTUPD=syrlynx,1,FFFF$Firmware Upgrade
                      • AT+GTSRI=syrlynx,3,,2,listeners.pegasusgateway.com,24400,,,,5,0,,1,,,FFFF$Heartbeat
                      • AT+GTDOG=syrlynx,1,60,7,128,,1,0,0,60,60,60,FFFF$ – Activate Automatic Restart



                      • AT+GTRTO=syrlynx,8,,3,,,,FFFF$Query Firmware Version
                      • AT+GTRTO=syrlynx,3,,0,,,,FFFF$Reboot Lynx

      ————————————————————————————————————-

      Syrus Lynx Commands

      Replace cero 0 for a 3 to make Syrus Lynx respond via SMS

      ————————————————————————————————————-

      AT+GTRTO=syrlynx,8,,3,,,,FFFF$           Query Firmware Version

      AT+GTUPD=syrlynx,1,FFFF$            Latest Firmware Upgrade

      AT+GTRTO=syrlynx,3,,0,,,,FFFF$            Reboot Lynx

      AT+GTRTO=syrlynx,14,,0,,,,FFFF$           Delete Buffer

      AT+GTRTO=syrlynx,1,,0,,,,FFFF$            Query position

      AT+GTRTO=BTGIoT,6,,0,,,,FFFF$            Requests SIM’s ICCID

      AT+GTRTO=syrlynx,F,,0,,,,FFFF$            Request Information Report

      AT+GTRTO=syrlynx,7,,0,,,,FFFF$           Request RSSI Level

      AT+GTRTO=syrlynx,2,BSI,0,,,,FFFF$           Query APN

      AT+GTDOG=syrlynx,1,60,7,128,,1,0,0,60,120,240,FFFF$    Autoreboot / 60 Min



      For any additional questions, contact Support Team to: support@digitalcomtech.com
