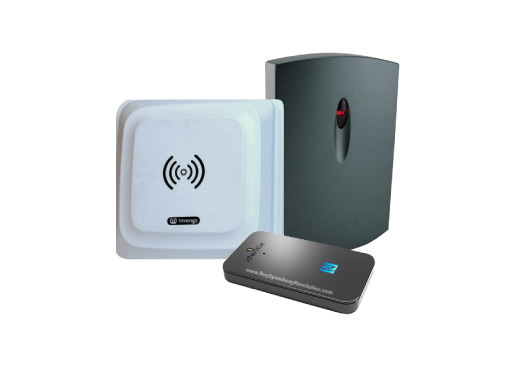

SPI RFID Short/Long Range Readers

The RFID firmware plugin gives Syrus the ability to communicate with RFID accessories in order to read RFID tags from short or long range. The short range RFID reader is capable of reading at 13.56MHz with the Wiegand interface, and MIFARE cards.

It is compatible with any device that has a 1-wire interface

Short range:

  • Reading range of up to 5cm
  • LED & buzzer indicator when the RFID card is present
  • Data output format – Wiegand / 13.56MHz
  • CR80 13.56MHz MIFARE
  • Indoor/Outdoor operation (IP65)

Long range:

  • Reading range of up to 6 meters
  • Wiegand 26, 66, and 34
  • Indoor/Outdoor operation (IP65)
  • Operating Temperature: 0°C to +40°C

Syrus is capable of taking the RFID, storing it in it’s memory as an authorized ID, and take actions based on an RFID that was authorized. This allows you to have access control, keep track of things, and integrate into a supply chain.

For more information please visit the RFID Readers page
